ferrite core smd power inductor for Portable Communication Equipments

Name: ferrite core smd power inductor for Portable Communication Equipments
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 1500 pcs/reel

Product name : ferrite core smd power inductor for Portable Communication Equipments

Type : ferrite core inductor

Usage : Portable Communication Equipments

Inductance : 6.8uH

Rated Current : 1.54A

Sample : Free samples available

Contact Now

ferrite core smd power inductor for Portable Communication Equipments

Description:

The inductance in general electronic circuit is hollow coil, or coil with magnetic core, can only pass small current, bear lower voltage;And the power inductance also has hollow coil, also has the core, the main characteristic is to use the thick wire to wrap, can endure dozens of Ann, hundreds, thousands, even tens of thousands of Ann.

E General information:
It is recommended that the temperature of the part does not exceed 125°C under
worst case operating conditions.
•Ambient temperature: -40°C to +85°C (refering to IR)
•Operating temperature: -40°C to +125°C
•Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
•Coplanarity of the terminal pads: 120μm
•Test conditions of Electrical Properties: 20°C, 33% RH

D Electrical Properties:

Properties	Test conditions		Value	Unit	Tol.
Inductance	10 KHz/ 100 mV	L	6.8	μH	±20%
Rated Current	ΔT = 40 K	IR	1.54	A	max.
Saturation Current	\|ΔL/L\| < 10%	Isat	2.10	A	typ.
DC Resistance	@ 20°C	RDC	0.131	Ω	max.
DC Resistance	@ 20°C	RDC	0.076	Ω	typ.
Self Resonant Freq.	@ 20°C	fres	35	MHz	typ.
Rated Voltage	@ 20°C	UR	80	VDC	max.

Product Tags:

dc dc converter inductor

high current power inductors

Wholesale ferrite core smd power inductor for Portable Communication Equipments from china suppliers

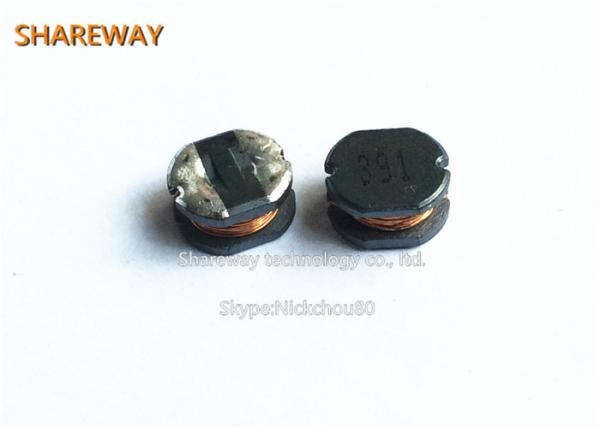

ferrite core smd power inductor for Portable Communication Equipments Images
